With the continuous development of the manufacturing industry and maker culture, CNC (Computer Numerical Control) machines have become essential tools for precision machining. They are widely used in maker spaces (also known as makerspaces or hackerspaces), which provide a collaborative environment for individuals or small teams to access tools and technical support, fostering creativity and innovation. The 3-axis CNC machining center, as a high-precision and efficient tool, plays a vital role in these spaces.
This article explores the key functions of the 3-axis CNC machining center, how it supports various projects and practices in maker spaces, and proposes 2-3 course designs to help users master CNC technology, enhancing their creative capabilities.

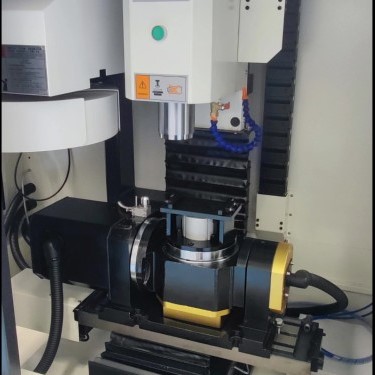

A 3-axis CNC machining center is an automated machine tool that uses computer numerical control to process a variety of materials, including wood, metal, and plastic. This machine typically features the following functions:
The machine is equipped with an advanced CNC control system (e.g., XENDOLL), capable of precise control of the X, Y, and Z axes. This ensures machining precision with a positioning accuracy of ±0.015mm and a repeatability of ±0.01mm. Such precision is crucial for tasks that require high accuracy, such as creating mechanical parts and complex designs.
The 3-axis CNC machining center supports various communication options, including USB, U-disk, and RS232. This makes it easy to transfer data and perform software upgrades. Users can seamlessly transfer design files (in G-code) from their computers to the CNC machine, ensuring an efficient workflow. With support for multiple interfaces and software upgrades, the machine can meet different user needs.
This machine features an 8-12 tool automatic tool changer (ATC) with an ISO20 spindle type, allowing for fast tool switching during machining. The spindle speed reaches up to 24,000 RPM, providing powerful cutting capabilities. The ATC system is ideal for complex, multi-step processes, reducing manual intervention and improving production efficiency.
The spindle speed ranges from 100 to 24,000 RPM, providing robust power and excellent cutting capabilities. This is particularly useful for high-speed cutting and fine engraving, enabling the machine to handle both precision tasks and high-speed operations with ease.
The built-in graphic simulation function displays the machining program's graphic and tool paths. This helps users verify the correctness of their machining paths before starting the actual process. By simulating the toolpath, users can avoid mistakes in the real machining process, improving efficiency and quality.
The machine is equipped with a self-diagnosis system that monitors internal and external statuses in real-time. In the event of an abnormal situation, the system immediately triggers an alarm, ensuring the machine remains operational and minimizing downtime. This function enhances the reliability and stability of the machine.
The machine's multi-language display makes it easier for users from different linguistic backgrounds to operate the CNC machine. This feature lowers the learning curve, allowing a wider range of users to access and use the equipment effectively.
The worktable size is 450mm x 160mm, with a maximum load capacity of 75kg. This enables users to process a variety of workpieces, both large and small, while the T-slot dimensions (3-16mm width, 63mm spacing) make it easy to set up and secure fixtures for machining.
The machine's X, Y, and Z axes feature a rapid traverse speed of 10,000mm/min, powered by a high-performance servo motor with a power rating of 0.75kW. This enables fast positioning and efficient machining. Additionally, the ball screw/hard screw system ensures high precision, minimal wear, and reliable performance.
The machine is equipped with a frequency conversion water-cooling motor system, which operates with low noise, high speed, and excellent durability. This cooling system ensures that the machine does not overheat during prolonged use, extending its lifespan and maintaining machining accuracy. The auto lubrication system keeps moving parts well-lubricated, reducing wear and ensuring stable operation.
The 3-axis CNC machining center plays several key roles in maker spaces:
Many makers and DIY enthusiasts in maker spaces require precision parts or small mechanical components, which demand high accuracy and stability in machining. The 3-axis CNC machining center, with its positioning accuracy of ±0.015mm and repeatability of ±0.01mm, provides users with the ability to produce finely detailed cuts and engravings, turning creative ideas into reality.
For startups, designers, and engineers, the CNC machine center offers the ability to quickly produce high-precision prototypes and products. In small-batch production, it significantly reduces costs and increases efficiency. Maker space users can take advantage of this machine to transition from design to finished products in a short time frame.

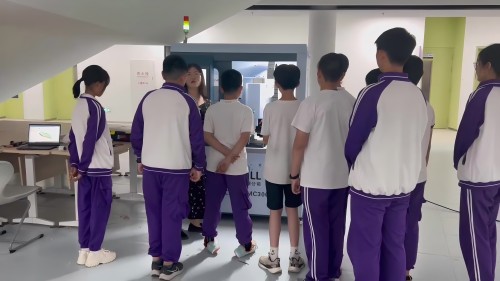

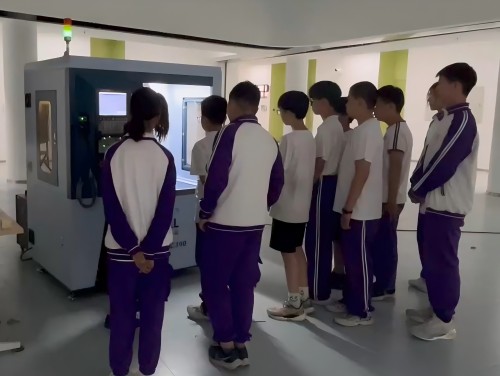

The 3-axis CNC machining center serves not only as a production tool but also as an educational platform. Maker spaces can offer training courses on CNC programming, mechanical design, and numerical control technology. This helps users, especially students and enthusiasts, build modern manufacturing skills, empowering them to explore more advanced topics and projects.
The CNC machine center is capable of machining a wide variety of materials and performing various tasks such as cutting, engraving, milling, and drilling. As a result, it supports many types of projects within maker spaces, from custom home decor and mechanical components to personalized gifts. The machine enables creators to transform their ideas into physical products, adding diversity to the types of projects that can be undertaken in a maker space.
With a rapid traverse speed of up to 10,000mm/min and a powerful servo motor system, the 3-axis CNC machining center maintains high stability even during continuous high-speed operations. This allows makerspaces to handle complex designs and high-demand tasks with both precision and efficiency.
To help users better master and utilize the 3-axis CNC machining center, the following 2-3 courses can be designed to guide users in learning and practicing CNC technology:
Course Objectives:
Understand the basic principles and operation of CNC machining centers.
Learn how to write basic G-code for simple CNC machining tasks.
Course Content:
Overview of CNC machine operation and components.
Introduction to basic G-code syntax and commonly used commands.
How to design simple parts using CAD software and generate G-code.
Hands-on practice machining simple cuts or engravings with the 3-axis CNC machine.
Course Structure:
Part 1: Introduction to CNC theory and machine operation training.
Part 2: Basic G-code programming and part design.
Part 3: Practical session where students will produce a small part or model using the CNC machine.
Course Objectives:
Master the use of the automatic tool changer (ATC) for complex machining.
Learn advanced CNC programming techniques, including macros and parameters.
Course Content:
In-depth operation of the CNC machine, including the ATC system.
Introduction to macros and macro programming for defining variables and logic.
How to choose the appropriate tools and switch between them during machining.
Course Structure:
Part 1: Advanced CNC machine operation, including the use of the ATC system.
Part 2: Introduction to macro programming and creating parameterized programs.
Part 3: Hands-on project where students will complete a complex machining task using multiple tools.
Course Objectives:
Use the CNC machine to create artistic or custom products.
Optimize design and machining paths using the graphic simulation function.
Course Content:
Techniques for artistic engraving and creative machining on the CNC machine.
Using the graphic simulation function to verify and optimize machining paths.
Exploring how CNC can be used for custom artwork or product design.
Course Structure:
Part 1: Artistic engraving techniques and CNC applications.
Part 2: Design creation and G-code generation, followed by path verification using simulation.
Part 3: Hands-on session where students will create a custom engraved or artistic product using the CNC machine.
The 3-axis CNC machining center not only provides advanced manufacturing tools for maker spaces but also offers tremendous creative potential for users. Through specialized courses, users can gain in-depth knowledge and hands-on experience with CNC technology, improving their ability to bring ideas to life. Whether producing high-precision parts, artistic engravings, or small-batch productions, the CNC machining center provides a robust platform for creators in maker spaces to explore and realize their innovative projects.If you need related products, please click the link below for more details:3Axis CNC Machine Center--VMC300
