As the manufacturing industry continues to demand higher precision and efficiency, the technology behind CNC (Computer Numerical Control) machines has evolved significantly. Among these advancements, 4-axis milling has become particularly essential for machining complex parts. Compared to traditional 3-axis machines, 4-axis CNC machines offer superior flexibility, particularly for machining spatial curves, inclined surfaces, and multi-sided parts. This article focuses on cutting strategies, toolpath optimization methods, and common issues and solutions related to 4-axis CNC milling toolpath planning, while omitting other less relevant details in favor of more specialized knowledge.

1. Basic Principles of 4-Axis Milling

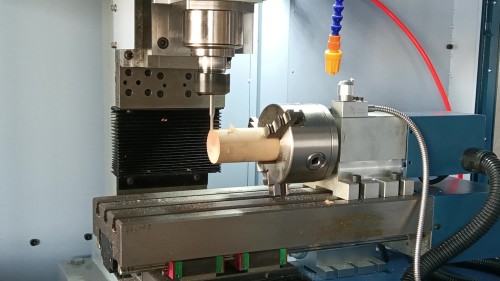

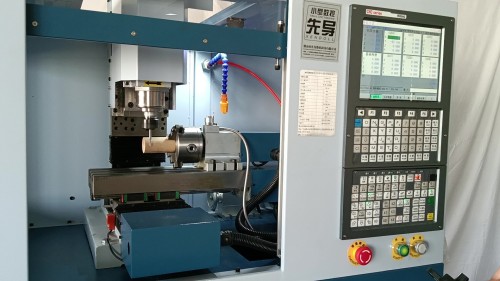

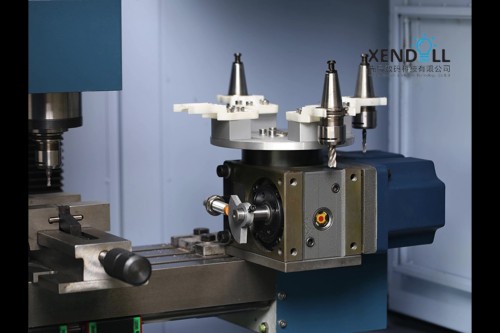

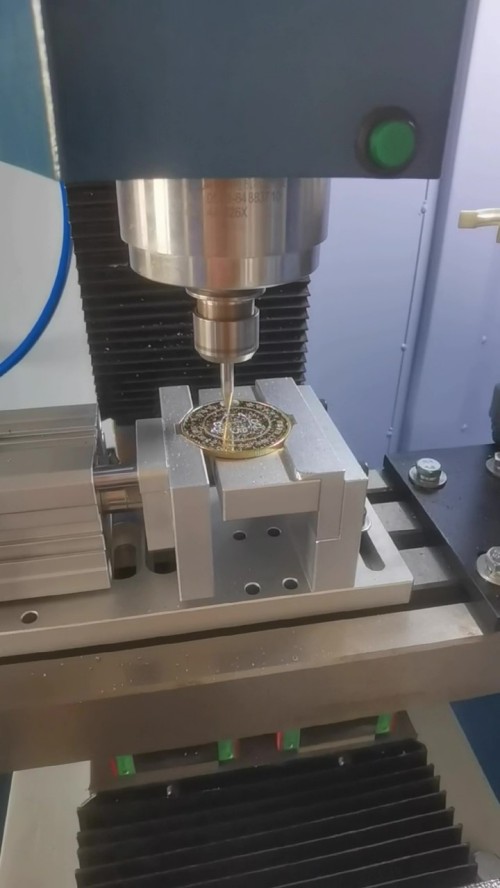

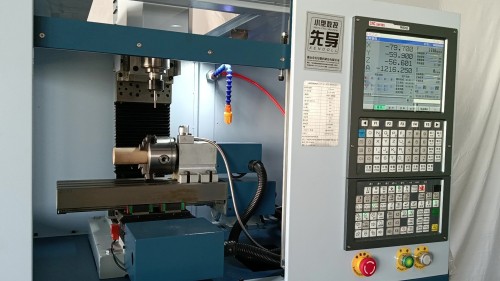

A 4-axis CNC milling machine typically consists of three linear axes (X, Y, Z) and one rotary axis (usually the A-axis or B-axis), which allows the workpiece to rotate during machining. By utilizing these four axes in coordination, 4-axis machines can perform more complex operations, offering higher flexibility and efficiency, especially in multi-directional machining of parts with complex geometries.

In 4-axis milling, toolpath planning needs to consider factors such as the geometry of the workpiece, cutting conditions, and tool usage. Due to the involvement of the rotary axis, optimizing the toolpath is crucial. A well-planned toolpath not only improves machining efficiency but also reduces tool wear and extends machine life.

2. Cutting Strategies

Cutting strategy is one of the key factors affecting both the efficiency and quality of 4-axis milling. A well-designed cutting strategy can improve tool life, reduce machining time, and ensure part precision. Below are some common cutting strategies used in 4-axis milling:

2.1 Parallel Cutting

Parallel cutting is suitable for machining flat or nearly flat surfaces. The toolpath is parallel to the workpiece surface. In 4-axis milling, the rotary axis can be used to maintain the tool's cutting angle and depth of cut, which helps prevent frequent adjustments to the toolpath due to changes in the workpiece surface. This strategy is often used for machining large flat surfaces or simple curved surfaces.

2.2 Spiral Cutting

Spiral cutting is commonly used for hole machining or complex surface machining. The toolpath follows a spiral trajectory that gradually deepens into the workpiece. This method evenly distributes the cutting load, reducing tool vibration and friction, thus enhancing stability and precision. In 4-axis milling, the rotary axis can be leveraged to optimize the toolpath further, preventing tool-workpiece collisions during the machining process.

2.3 Z-Level Cutting

Z-level cutting is primarily used for machining complex 3D surfaces and sloped areas. In this strategy, the tool follows the profile of each horizontal layer of the workpiece surface. It is commonly used for roughing or removing larger volumes of material. With 4-axis milling, the workpiece can be rotated to adjust the cutting orientation, making it easier to achieve effective cuts at different angles.

2.4 Layer-by-Layer Cutting

Layer-by-layer cutting is often employed for complex 3D shapes and high-precision machining. In this strategy, material is removed layer by layer, ensuring each layer's cutting depth remains shallow. This minimizes tool wear and deformation. The rotary axis of the 4-axis CNC machine helps maintain a constant cutting angle throughout the process, which improves stability and consistency.

3. Toolpath Optimization

Optimizing the toolpath is a crucial part of 4-axis CNC milling, as it can improve machining efficiency and reduce energy consumption. Below are several methods for optimizing toolpaths.

3.1 Tool Entry/Exit Strategy Optimization

The way the tool enters and exits the workpiece significantly impacts tool life and machining precision. For 4-axis milling, selecting the correct tool entry angle is critical. A large entry angle may generate excessive cutting forces, leading to vibrations and inaccuracies. Using gradual entry and exit strategies can reduce sudden shock forces and improve machining quality.

3.2 Avoiding Repetitive Toolpaths

Repetitive toolpaths increase machining time and lead to unnecessary tool wear. In 4-axis toolpath planning, it is essential to minimize repetitive movements. Optimizing cutting sequences and toolpath arrangements can reduce redundant cuts and improve machining efficiency.

3.3 Collision Detection and Correction

In 4-axis CNC milling, collision detection is a vital step in toolpath planning. Due to the flexibility of the 4-axis machine, the toolpath may inadvertently lead to collisions with the workpiece, fixtures, or machine components. Therefore, real-time collision detection and subsequent toolpath corrections are crucial. Advanced simulation software can be used to analyze and simulate the machining process, ensuring that all potential collision risks are addressed.

3.4 Toolpath Smoothing

Toolpath smoothing is another important aspect of optimization. Abrupt changes in tool trajectory can lead to rapid tool wear or poor surface quality on the workpiece. Smoothing the toolpath can reduce these negative effects. This can be done by adjusting the tool's path to make turns and direction changes more gradual, ensuring a more stable cutting process.

4. Common Issues and Solutions

4.1 Excessive Cutting Force

Issue: Excessive cutting forces during 4-axis milling can lead to rapid tool wear, poor surface finish, or even machine vibration.

Solution: To reduce cutting forces, optimize cutting parameters such as cutting speed, feed rate, and depth of cut. Additionally, using the appropriate cutting strategy, avoiding high-speed cutting on hard materials, and increasing the amount of cutting fluid can help alleviate excessive cutting forces.

4.2 Long Toolpaths

Issue: Long toolpaths not only increase machining time but also lead to tool deflection and wear during the cutting process.

Solution: Optimizing the toolpath by avoiding unnecessary detours and redundant movements can reduce toolpath length. Using shorter and more efficient cutting paths and selecting the right cutting strategy helps improve machining time and reduces the burden on the tool.

4.3 Collision Risks

Issue: Poor toolpath planning in 4-axis milling may result in collisions between the tool, workpiece, or fixture, causing damage to the machine and parts.

Solution: Collision detection algorithms should be integrated into the toolpath planning process to identify potential risks. Using simulation software for comprehensive process simulation helps identify and resolve collision issues before actual machining takes place.

5. Conclusion

Toolpath planning for 4-axis CNC milling is a crucial element in achieving efficient and high-quality machining. When planning toolpaths, it is essential to consider cutting strategies, optimize tool trajectories, and address common issues that arise during the process. Through the use of optimized cutting strategies and toolpath adjustments, significant improvements in machining efficiency, tool life, and part accuracy can be achieved. As technology continues to advance, 4-axis CNC machines will offer even more functionality, and toolpath planning methods will continue to evolve, leading to higher levels of automation and machining precision in the future.
