In modern machining, the lathe is a core piece of equipment widely used for precision machining of various metal and non-metal parts. One of the critical requirements in lathe operations is ensuring that the workpiece is held securely and accurately during processing. This becomes even more challenging when dealing with small parts, where selecting the appropriate clamping method is crucial for maintaining machining accuracy while avoiding deformation or damage to the workpiece. As the primary clamping device on a lathe, the chuck plays a central role in this process. Its design, functionality, and clamping force control directly influence machining quality and efficiency. This article will discuss the best methods for clamping small parts on a lathe chuck, covering clamping method selection, clamping force control, clamping device optimization, and the assurance of clamping precision.

1. Basic Structure and Working Principle of Lathe Chucks

A lathe chuck is a clamping device used to secure the workpiece to the lathe spindle, allowing it to rotate during machining. Chucks come in various types, with the most common being the three-jaw chuck, four-jaw chuck, and vacuum chuck. For clamping small parts, the three-jaw chuck and four-jaw chuck are typically preferred, particularly for precision machining and clamping irregularly shaped parts, where the four-jaw chuck is more advantageous.

1. Three-Jaw Chuck
   The three-jaw chuck is the most commonly used chuck type on lathes and is suitable for clamping cylindrical workpieces. The jaws of the chuck are arranged symmetrically, offering self-centering capabilities. When the chuck handle is rotated, the jaws converge toward the center of the workpiece to clamp it securely. For small, round parts, the three-jaw chuck can provide uniform clamping force, making it efficient for high-speed and high-volume machining.

2. Four-Jaw Chuck
   The four-jaw chuck provides more precise clamping than the three-jaw chuck. It is designed with four independent jaws, each of which can be adjusted separately, allowing for greater precision in clamping irregularly shaped parts or parts with higher accuracy requirements. The four-jaw chuck is particularly suited for clamping small, non-circular workpieces and helps prevent errors caused by deformation or loosening of the workpiece during machining.

3. Vacuum Chuck
   Vacuum chucks use suction to hold lightweight or thin-walled workpieces, typically used for plastics, aluminum alloys, or other materials that are prone to deformation. Although the clamping force of vacuum chucks is relatively weak compared to mechanical chucks, they are ideal for holding thin-walled or delicate workpieces without applying excessive pressure, reducing the risk of damage.




2. Challenges in Clamping Small Parts

Clamping small parts presents several challenges due to the specific characteristics of the workpieces, such as their small size, low weight, and delicate materials. The main difficulties include the following:

1. Insufficient or Uneven Clamping Force
   Small parts typically have a limited surface contact area, making it challenging to apply sufficient and even clamping force. If the clamping force is too high in localized areas, it can damage the workpiece surface or cause deformation. On the other hand, insufficient clamping force may lead to loosening or instability during machining.

2. Workpiece Deformation and Damage
   Small parts, especially thin-walled, long, or brittle materials, are highly susceptible to deformation when excessive clamping force is applied. Even minor variations in clamping pressure can cause distortion, compromising the dimensional accuracy of the workpiece and the quality of the machining.

3. Insufficient Positioning Accuracy
   Small workpieces require high precision in positioning, as even small errors can lead to significant deviations during machining. Achieving precise and stable clamping and positioning is particularly critical in applications requiring tight tolerances.

4. Vibration and Instability
   When clamping small parts, inadequate or unstable clamping can lead to vibrations during high-speed machining, which adversely affects both the accuracy and surface finish of the workpiece. This is particularly problematic when machining small, lightweight parts at high cutting speeds.

3. Best Methods for Clamping Small Parts

To address the challenges mentioned above, selecting the right clamping method and employing appropriate technological solutions are essential. Below are several common and effective clamping methods:

1. Use of Specialized Fixtures and Pads
   To avoid uneven force distribution and reduce the risk of damage to small parts, specialized fixtures or pads (e.g., rubber pads or soft metal inserts) can be placed between the chuck jaws and the workpiece. These fixtures help distribute the clamping force evenly across the surface of the workpiece, reducing the risk of deformation or indentations. For thin-walled or precision parts, using soft pads is particularly effective in preserving the surface quality and integrity of the workpiece.

2. Damping Systems and Torque Control
   Employing damping systems in the clamping process can significantly improve stability during machining. For example, using rubber inserts on the chuck jaws or incorporating pneumatic damping devices can absorb vibrations and impacts, enhancing the stability of the workpiece during machining. In modern CNC lathes, advanced torque control systems are often integrated to dynamically adjust the clamping force, ensuring stable clamping across various operating conditions.

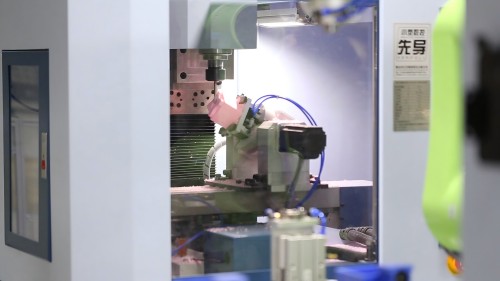

3. Pneumatic or Hydraulic Clamping Systems
   Pneumatic and hydraulic chucks are designed to provide precise and stable clamping force through controlled air or fluid pressure. These systems are particularly effective for clamping small parts with high precision, as they can adjust the clamping force dynamically, ensuring uniform and reliable holding. Pneumatic chucks and hydraulic chucks are commonly used in high-precision operations and are particularly useful for parts with complex geometries or stringent tolerance requirements.

4. Micro-Adjustable Four-Jaw Chucks
   For irregularly shaped parts or parts requiring high precision, micro-adjustable four-jaw chucks offer greater flexibility. Each jaw can be independently adjusted, allowing for precise clamping and positioning. This ensures that the workpiece is clamped symmetrically, preventing deformation and maintaining dimensional accuracy during machining. This type of chuck is ideal for small parts that need to be clamped with high precision.

5. Center Hole Positioning
   For parts with a center hole, positioning the workpiece on the lathe spindle using the center hole provides higher precision. The center hole serves as a reference for accurate alignment, ensuring that the workpiece remains in the correct position throughout the machining process. This method is particularly beneficial for high-precision shaft parts or round workpieces that require tight tolerances.

6. Vacuum Chucks and Soft Clamping Technologies
   For thin or lightweight workpieces, vacuum chucks are an excellent choice. These chucks use suction to hold the workpiece in place, applying only minimal force and avoiding deformation. Vacuum chucks are particularly suitable for machining delicate, non-metallic materials and thin-walled parts. Additionally, soft clamping technologies, such as magnetic chucks or rubber jaws, are effective when clamping parts with soft surfaces, reducing the risk of damage and ensuring a high level of precision during machining.




4. Key Considerations When Clamping Small Parts

In addition to choosing the right clamping method, the following points should be considered to ensure stable clamping and maintain machining accuracy:

1. Chuck Cleanliness and Maintenance
   The cleanliness of the chuck is critical to the effectiveness of clamping. Before clamping small parts, the chuck should be thoroughly cleaned to remove debris, chips, or oil, which may interfere with proper clamping. Regular maintenance of the chuck, including checking for wear and tear on the jaws, is also essential to ensure that it remains in optimal working condition.

2. Workpiece Inspection Before Clamping
   Before clamping small parts, it is important to inspect the workpiece for surface flatness, dimensional accuracy, and shape. For irregularly shaped parts, special attention should be paid to ensuring that the clamping force is distributed evenly to avoid deformation during the clamping process. Any defects or irregularities should be corrected before proceeding with clamping.

3. Stability Check After Clamping
   After clamping the workpiece, it is essential to check its stability before starting the machining process. This can be done by manually checking for any play or shifting of the workpiece or using laser measuring systems to detect any misalignment. Ensuring that the workpiece is securely held in place helps prevent inaccuracies and machining errors.

5. Conclusion

Clamping small parts on a lathe requires careful consideration of the workpiece's size, material, shape, and the precision required in the machining process. By selecting the appropriate clamping method and utilizing advanced technologies such as damping systems, pneumatic clamping, and micro-adjustable chucks, it is possible to ensure stable clamping and maintain high machining accuracy. Mastering clamping techniques and understanding the nuances of clamping small parts are key to improving machining quality and production efficiency.
