5-axis CNC milling machines are widely used in modern manufacturing, especially in industries such as aerospace, automotive, medical, and mold making. These machines play a crucial role due to their ability to process complex shapes and achieve high precision. In this article, we will provide a detailed overview of the practical operation steps, technical key points, and the selection of tools and fixtures for 5-axis CNC milling, to help operators master operational skills and improve machining efficiency.

1. Basic Principles of 5-Axis CNC Milling Machines

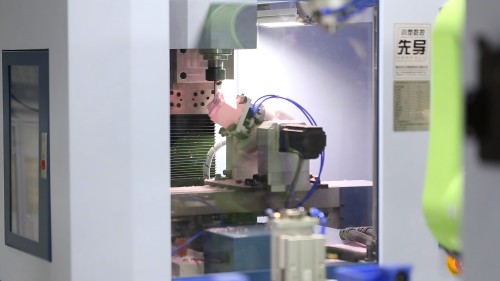

A 5-axis CNC milling machines  has five independent axes: three linear axes (X, Y, Z) and two rotational axes (A and B, or B and C). This enables the machine to cut in multiple directions and angles, making it capable of machining complex three-dimensional shapes, inclined surfaces, and multi-faceted parts. The 5-axis simultaneous movement allows for greater flexibility, as the tool can be positioned in three planes while also rotating around any of the axes. This eliminates tool interference issues that occur with traditional 3-axis machines, significantly improving machining efficiency and precision.

2. Practical Steps in 5-Axis CNC Milling Operation

1. Program Design and Toolpath Planning

Before starting the 5-axis CNC milling machines  operation, the first step is to write the program and plan the toolpath. Program design is a key step in 5-axis machining, as it determines the tool's movement trajectory, feed rate, and cutting sequence.

• Selecting CAM Software: Common CAM (Computer-Aided Manufacturing) software includes Mastercam, UG (Unigraphics), and PowerMill. These software tools allow operators to import 3D models and automatically generate machining paths. For complex parts, CAM software optimizes toolpaths to avoid unnecessary tool movements and reduce machining time.

• Toolpath Design: When designing toolpaths, considerations include the complexity of the part, the tool’s contact angle with the workpiece, and the tool’s length and diameter. In 5-axis milling, optimizing the toolpath is particularly important to prevent tool interference and to increase efficiency.

  Common toolpath strategies include:

• Point Milling: Used for complex surface machining by setting several machining points for step-by-step cutting.

• Profile Milling: Applied to machining simple shapes such as part contours or edges.

• Spiral Milling: Suitable for hole machining, allowing for smooth cutting in a spiral pattern, which ensures cutting stability.

2. Tool Selection and Configuration

Choosing the right tool is crucial in 5-axis CNC milling operations as it directly affects machining efficiency and part quality.

• Common Tool Types: Tools used in 5-axis milling include end mills, ball mills, face mills, drills, and toolholders. Ball mills are ideal for complex surface machining, while end mills are typically used for flat machining. Tool selection should be based on the material of the workpiece, its shape, and the required surface finish.

• Tool Length and Diameter: Tool length and diameter should match the machining requirements. Long tools tend to be less rigid and can cause vibration, impacting machining quality, while short tools may not reach certain areas of the workpiece. Tool selection should be based on specific machining tasks.

• Tool Materials: Tool material selection should consider the material being machined and cutting conditions. Carbide tools are suitable for hard materials, while coated tools improve wear resistance and heat resistance, which is important when machining high-temperature alloys and difficult-to-machine materials.

3. Workpiece Fixturing and Fixture Selection

One of the main challenges in 5-axis CNC milling machines  is how to securely fixture the workpiece to ensure stability during multi-axis movements. Proper fixtures ensure the workpiece remains stable, thereby guaranteeing machining precision and surface quality.

• Fixture Types: Common fixtures include fixed fixtures, rotary fixtures, and vacuum fixtures. Rotary fixtures are particularly useful when parts require adjustments at multiple angles, as they allow for more flexible positioning along with the 5-axis rotational movements.

• Fixture Design Requirements: Fixture design must take into account the shape and machining requirements of the workpiece while avoiding interference with the tool. The fixture should securely hold the workpiece without causing deformation or displacement during machining.

• Workpiece Clamping: When clamping the workpiece, ensure that the center point is aligned properly to prevent shifting during machining. For complex parts, it’s crucial to ensure the workpiece is stable in all directions.




4. Machine Setup and Start-Up

Machine setup is an essential step before actual machining, ensuring that the machine operates correctly and all parameters are calibrated.

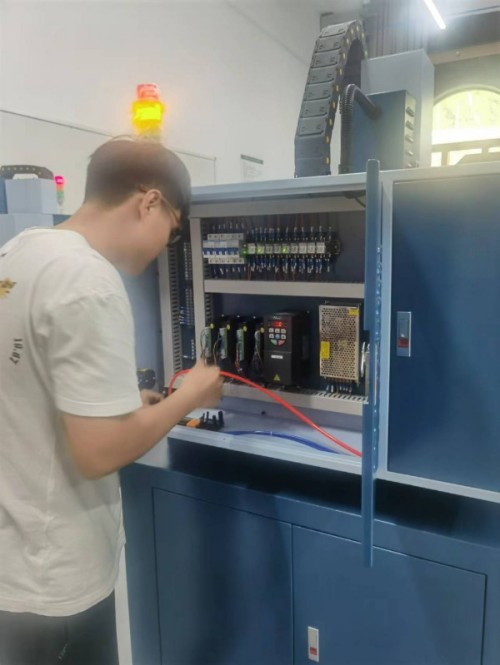

• Check Machine Status: Ensure that all axes, the spindle, and tool magazines are functioning properly. Also, check that the coolant system is sufficient and that there are no oil leaks or other faults.

• Tool Setting: Before starting the machining process, it is necessary to set the tool properly using a tool setter or by manually aligning the tool with reference points on the machine.

• Test Cutting: Before machining the actual part, conduct a dry run or simulation to check the toolpath and program for any issues. This helps to identify potential tool interference or machine collisions.

5. Monitoring and Adjustment During the Machining Process

During the 5-axis CNC milling operation, operators need to monitor the process in real-time and make adjustments as necessary.

• Monitor Machining Progress: Through the CNC control system, operators should monitor the machining process, including toolpath, cutting forces, vibration, and more. If excessive tool wear, workpiece deformation, or cutting force issues are detected, adjustments should be made.

• Parameter Adjustment: Depending on the machining situation, adjust cutting parameters such as feed rate, cutting depth, and spindle speed. For hard materials and complex surfaces, it may be necessary to reduce cutting speeds or use smaller cutting depths to reduce tool load.




6. Post-Machining Procedures

Once machining is complete, operators need to check the part and perform any necessary finishing operations.

• Part Inspection: After machining, use measuring tools such as a coordinate measuring machine (CMM) to check the dimensions and geometry of the part to ensure it meets design specifications. If there are deviations, the part may need to be reworked or corrected.

• Tool Cleaning and Maintenance: After machining, clean the tools and machine to remove chips, coolant, and other debris. Check for tool wear and replace or regrind tools as necessary. Proper tool maintenance is crucial for extending tool life and maintaining machining accuracy.

3. Conclusion

5-axis CNC milling technology has become an indispensable part of modern manufacturing due to its high efficiency and precision. By properly designing programs, selecting tools, configuring fixtures, and setting up the machine, operators can significantly improve machining efficiency and ensure part quality. Throughout the machining process, operators must pay close attention to details, adjust parameters flexibly, and monitor the operation closely. Mastering these practical operation steps and technical key points will help operators efficiently perform 5-axis CNC milling machines  operations, meeting the high precision and high-efficiency demands of modern manufacturing.
