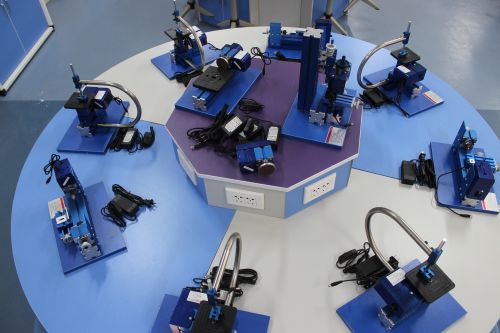

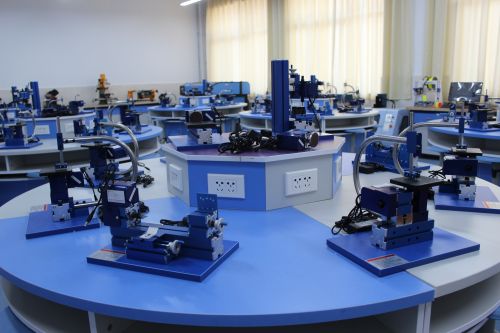

Small universal milling machines, widely used in the metalworking industry, have become indispensable equipment in workshops and small-scale manufacturing enterprises due to their compact structure, ease of operation, and versatile machining capabilities. These machines can perform a variety of machining tasks, ranging from basic flat milling to complex 3D surface milling. This article explores the common machining methods used on small universal milling machines from a professional perspective, providing insights into their machining technologies and applications.

1. Flat Milling

Flat milling is one of the most basic and common machining methods on small universal milling machines. In flat milling, the cutting tool primarily moves horizontally along the workpiece surface, typically used for machining flat surfaces, grooves, steps, and other geometric features. There are two main types of flat milling:

1. End Milling: This method uses an end mill, where the cutting edges are located at the bottom of the tool. It is used for machining horizontal surfaces, grooves, and holes. End milling is commonly applied when high precision is required for the workpiece surface.

2. Face Milling: This method uses a face mill, where the cutting edges are located around the periphery of the tool. It is used for machining larger flat surfaces, making it ideal for wide surface areas.

On small universal milling machines, flat milling typically requires appropriate fixtures to secure the workpiece, allowing for high-precision machining. By adjusting feed rates and cutting depths, operators can control the surface finish.

2. Form Milling

Form milling refers to using a specially shaped milling cutter to produce complex contours or shapes on the workpiece. This method can create internal and external profiles, raised features, and grooves. Common form milling cutters include round, V-shaped, and T-shaped cutters, and the appropriate cutter is selected based on the machining requirements.

Form milling on small universal milling machines is typically used for the production of molds and mechanical components. Its main advantage is the ability to machine complex shapes without the need for secondary processes like grinding or finishing, making it particularly useful for small batch and varied production runs.

3. Gear Milling

Gear milling is a process used to machine gears, racks, sprockets, and other similar components. On small universal milling machines, gear milling is accomplished using specialized gear milling cutters. This process includes machining external gears, internal gears, and helical gears.

Although small universal milling machines have relatively limited size, they can still efficiently machine precise gears by selecting appropriate cutters and adjusting workpiece positioning. The gear milling process is highly dependent on factors such as cutter-workpiece engagement angles and cutting speed, which directly affect the quality of the gear tooth profiles. Therefore, operators must master the necessary techniques to ensure correct gear geometry and accuracy.

4. Slotting

Slotting refers to the process of creating grooves on the surface of a workpiece, including T-slots, straight slots, and V-shaped slots. On small universal milling machines, slotting is commonly performed using a slotting cutter. This process involves precise positioning of the workpiece to achieve defined depth and width of the grooves.

Slotting is widely used in mechanical manufacturing, such as in the production of fixtures, molds, and structural components. In practice, it is essential to choose the appropriate cutter type and feed method to ensure machining accuracy and surface quality. Moreover, the sequence of slotting operations, feed speed, and cutting depth must be carefully designed to optimize efficiency.

5. Angled Milling

Angled milling is a common machining method on small universal milling machines used to machine inclined surfaces, angled grooves, and other similar features on workpieces. Unlike flat milling, angled milling requires the cutter to be set at a specific tilt relative to the workpiece surface. This can be accomplished by adjusting the worktable or using angle cutters.

Angled milling is widely applied in the production of components with sloped holes or grooves, and it is particularly useful for manufacturing parts with complex shapes. Since angled milling often involves higher cutting forces, attention must be paid to the stability of the cutter and the rigidity of the machine.

6. Spiral Milling

Spiral milling is a process used to machine spiral surfaces on workpieces, such as spiral grooves, threaded holes, and helical gears. Spiral milling typically uses cutters with spiral flutes or relies on a rotary table to achieve the desired motion.

On small universal milling machines, spiral milling requires adjusting the feed rate and cutter angle to ensure precision. This method is used to manufacture components like screws, spiral grooves, and helical drives. Special attention should be paid to controlling cutting forces and the workpiece's clamping strength to prevent vibration or deformation.

7. Surface Milling

Surface milling involves machining complex curved surfaces on workpieces. It requires multiple steps and the use of various types of cutters, such as ball-end mills or cylindrical mills, along with adjustments to the machining angles and feed methods to achieve the desired curvature.

Surface milling is particularly common in industries such as mold making and aerospace, where precision curved surfaces are required. Although small universal milling machines are limited in terms of size and precision compared to larger machines, skilled operators can still achieve high-quality results by selecting the appropriate processes and maintaining the machine's rigidity.

Conclusion

Small universal milling machines are highly flexible and versatile, making them suitable for a wide range of machining tasks. From basic flat milling to complex surface and gear milling, they can handle a variety of components with different shapes and sizes. While their precision may be limited by the machine's rigidity and size, careful planning, proper tool selection, and parameter adjustments can ensure high efficiency and quality in many small-batch, varied-production environments. For operators, mastering these machining methods is essential to improving productivity, ensuring quality, and achieving successful outcomes in machining practice.
