In modern manufacturing, 5-axis CNC milling machines are widely used for machining complex parts, particularly in industries such as aerospace, mold making, and medical devices. With their ability to machine along multiple axes simultaneously, 5-axis CNC milling machines offer high precision and efficiency. However, to fully leverage the advantages of 5-axis machining and improve efficiency, several technical strategies must be implemented. This article will explore various ways to improve the machining efficiency of 5-axis CNC milling machines from a technical and educational perspective.

1. Optimize Tool Selection and Machining Strategies

Tool selection is one of the key factors in improving machining efficiency. In 5-axis machining, the type, size, material, and coating of the tool directly influence cutting stability, cutting forces, temperatures, and tool life. Common tools include end mills, ball nose end mills, and tapered end mills. To enhance efficiency, tool selection can be optimized in several ways:

Choose the Right Tool Material and Coatings
Different tool materials such as high-speed steel (HSS), carbide, and ceramics are suited for different machining conditions. To improve cutting efficiency, choose the appropriate tool material based on the workpiece material and cutting conditions. Additionally, tool coatings (such as TiN, TiAlN) reduce friction and tool wear, enhancing tool life.

Optimize Tool Geometry
The geometry of the tool used in 5-axis machining should match the shape of the workpiece and the cutting conditions. Ball nose end mills are commonly used for complex surface machining due to their ability to adapt to different cutting angles, improving both surface quality and machining efficiency.

Select Optimal Cutting Parameters
After selecting the tool, it is essential to choose appropriate cutting depths, feed rates, and cutting speeds based on the material of the workpiece, cutting conditions, and machine performance. High feed rates, suitable cutting depths, and high-speed machining can significantly improve production efficiency, but care must be taken to avoid vibration or excessive tool wear.

2. Properly Plan Tool Paths and Programming

Tool path planning and programming are crucial factors in improving machining efficiency on a 5-axis CNC milling machine. Proper tool path planning can reduce idle time and tool changeovers, thereby saving machining time.

Choose the Shortest Tool Path
Optimizing the tool path directly affects machining efficiency and surface quality. By properly planning the path, it is possible to avoid excessive rotations and stops, especially when machining complex surfaces, thereby reducing tool idle movements and minimizing non-productive time.

Adopt Efficient Cutting Strategies
When machining complex parts, it is effective to combine roughing and finishing operations. For example, during roughing, larger cuts and higher feed rates can be used to remove material quickly, while finishing requires more refined tool paths to ensure surface quality and precision.

Use Intelligent Programming Software
Modern CNC programming software typically includes intelligent optimization features such as automatic tool path generation, collision detection, and cutting force analysis. These tools help programmers minimize unnecessary tool changeovers, adjust feed strategies, and optimize tool paths, thereby improving machining efficiency.

3. Enhance Machine Tool Dynamic Performance

The machining efficiency of a 5-axis CNC milling machine is not only influenced by the machining process and programming but also by the dynamic performance of the machine itself. The stability, rigidity, accuracy, and speed of the machine have a significant impact on both machining quality and efficiency.

Improve Machine Rigidity and Stability
Insufficient machine rigidity can lead to vibrations during machining, affecting accuracy and even reducing tool life. Therefore, it is important to regularly check the rigidity and stability of key machine components such as the spindle, guide rails, and drive systems to ensure that they are in optimal working condition. This helps improve machining efficiency by preventing instability during operation.

Optimize Machine Speeds and Accelerations
High-speed and high-acceleration capabilities in a 5-axis CNC milling machine can reduce machining cycle times and idle times. By increasing feed rates and acceleration while maintaining machining precision, overall machining efficiency can be significantly improved. Regular machine maintenance is essential to keep it in top performance condition, preventing slow movements due to wear or aging.

4. Improve Tool Management and Automation

Tool management is another critical factor affecting the machining efficiency of 5-axis CNC milling machines. Proper tool management can reduce tool change frequency, minimizing downtime and improving overall production efficiency.

Use Intelligent Tool Magazine Systems
Many modern 5-axis CNC milling machines come equipped with automatic tool magazines, allowing for automatic tool changes and reducing human intervention time. By using smart tool magazines and tool life monitoring systems, tools can be automatically replaced when they reach their preset wear limits, preventing downtime due to tool failure.

Optimize Tool Usage Sequences
During machining, the sequence of tool usage should be planned based on the tool’s suitability, machining requirements, and tool life. Avoiding frequent tool changes within the same operation reduces idle time and contributes to greater efficiency.

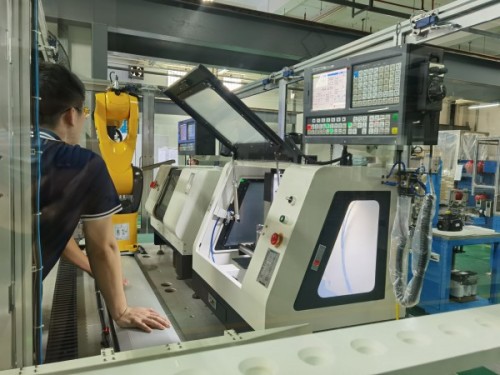

Automate the Machining Process
With the advent of Industry 4.0, CNC machining is moving toward more intelligent and automated systems. Introducing automated material loading, in-process measurement, and real-time monitoring technologies enables continuous machining without human intervention, significantly improving production efficiency.

5. Regular Equipment Maintenance and Servicing

The precision and stability of the machine tool are directly related to machining efficiency. Regular maintenance and servicing of the machine not only extends its life but also ensures it is always in optimal working condition. Common maintenance tasks include cleaning, lubrication, and inspecting the wear of key components such as the spindle and drive systems.
