In today’s manufacturing landscape, small CNC milling machines are increasingly becoming key tools for enhancing production efficiency and machining precision. The 5-axis milling machine is highly regarded for its versatility and high accuracy. This article explores the Xendoll 5-axis milling machine VMC220 and how it meets various complex machining needs.

 Core Features of the VMC220

 1. Structural Advantages

The Xendoll VMC220 features a robust cast iron vertical structure that ensures the stability and durability of the machine. The XYZ axis linear guide design allows for smoother tool movement, reducing machining errors, while the spindle column effectively enhances cutting efficiency.

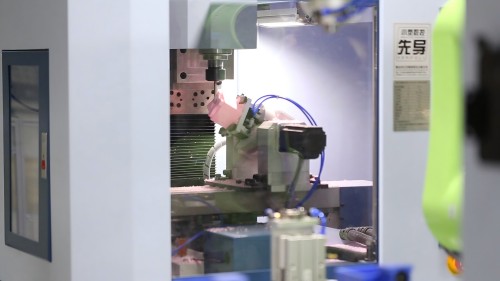

 2. Precision Rotary Table

Equipped with a Yibo reducer cradle-type rotary table, the machine offers exceptional rotational accuracy. This design ensures high precision in positioning and repeatability during complex machining tasks.

 3. Safety Protection System

The VMC220 is designed with a fully enclosed protective cover, vertical lift door, and safety protection device for the machine door, ensuring operator safety. This setup also minimizes noise and coolant splash, creating a better working environment.

 4. Efficient Cooling System

The cooling system of the VMC220 is built-in air-cooled, capable of operating under a pressure of ≥0.6 kPa and controlled by M commands. This cooling method not only improves cutting efficiency but also extends tool life.

 Key Performance Parameters

- Linear Precision

  - Repeat positioning accuracy: ≤0.01mm

  - Rotary axis accuracy: positioning accuracy ≤16”, repeat positioning accuracy ≤12”

- Travel Range

  - X/Y/Z axes: 220mm / 120mm / 200mm

  - B-axis travel: ≥+30~-120°

  - C-axis travel: ≥+/-N×360

- Spindle Parameters

  - Chuck taper: ER25

  - Maximum power: 1.1kW

  - Maximum speed: 6000rpm

  - Maximum tool diameter: 16mm

- Worktable Information

  - Dimensions: 400mm x 140mm

  - Load capacity: 15kg

  - T-slot: 12mm/3

- Movement Speed

  - X/Y axis: 6000mm/min

  - Z axis: 4000mm/min

 Applicable Fields

The Xendoll VMC220 is suitable for multiple industries, including aerospace, automotive, mold-making, and medical devices, especially for the machining of complex parts. Its high precision and flexibility make it an ideal choice for small batch production and custom machining.

 Conclusion

When selecting a small CNC milling machine, the Xendoll 5-axis milling machine VMC220 stands out as an excellent choice. With its superior structural design and performance, it will help enhance your production efficiency and machining quality. If you’re interested in the VMC220, feel free to contact us for more information!https://www.xendolltools.com/product/5_axis_milling.html
