Introduction

3-axis CNC machines are one of the most critical pieces of equipment in modern manufacturing, widely used in precision machining, component manufacturing, and other industries. CNC machines operate under the control of computer programs, greatly improving production efficiency and machining accuracy. However, as the machines age and undergo wear and tear, various faults may arise, impacting production schedules and product quality. Rapid fault diagnosis and efficient maintenance are crucial to ensure the smooth operation of CNC machines.

This article explores common faults in 3-axis CNC machines, along with their diagnosis methods and maintenance measures, to help operators and technicians address machine faults effectively.

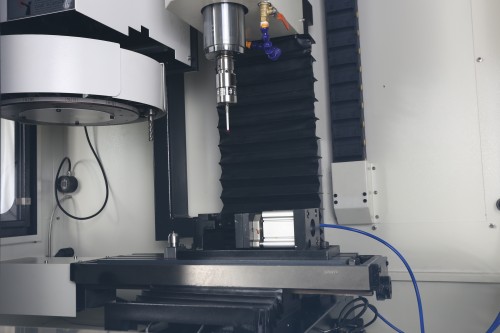

I. Structure and Working Principle of 3-Axis CNC Machines

A 3-axis CNC machine typically consists of the following main components:

1. Mechanical Components: This includes the bed, worktable, spindle, and guideways.

2. Drive System: Composed of servo motors, drivers, and transmission devices, it drives the movement of the machine.

3. Control System: This system processes the input CNC program and controls the coordinated operation of various parts of the machine.

4. Electrical System: This includes the power supply, switches, and wiring, providing the necessary electrical power for the CNC machine's operation.

The working principle of a 3-axis CNC machine involves moving the X, Y, and Z axes under the control of a CNC system, with servo motors driving the machine’s movements. The CNC system precisely controls the machining process based on different operational requirements, enabling milling, drilling, tapping, and other machining operations.

II. Common Faults and Causes

1. Servo Motor Failures

Servo motors are a key driving component of CNC machines. Their failure directly impacts the machine’s precision and movement. Common servo motor faults include:

• Overload Protection: When the servo motor is overloaded, it triggers a protection mechanism, causing the machine to stop. The causes could be excessive load during operation or a fault in the motor itself.

• Abnormal Vibration: Irregular vibrations of the motor are usually due to bearing wear, rotor imbalance, or poor matching between the motor and driver.

• Overheating: When the motor’s temperature exceeds safe limits, it could be due to prolonged overload or issues with the motor’s cooling system.

Maintenance: Check parameters such as current, voltage, and temperature to determine if there are overload or overheating issues. If bearing damage or rotor imbalance is identified, repair or replace the motor. If necessary, recalibrate and adjust the motor.

2. CNC System Failures

The CNC system is the brain of the machine, and its stability is vital for the machine’s operation. Common CNC system failures include:

• Program Errors: Errors in the CNC program or incorrect formats may cause the machine to malfunction, leading to positional errors or poor-quality machining.

• System Freeze: The CNC system might freeze due to hardware failure (e.g., damage to the main control board) or software malfunctions.

• Signal Loss or Interference: Loss or interference in sensor signals can prevent the CNC system from accurately obtaining the machine’s status, affecting machining precision.

Maintenance: For program errors, verify the input data and instructions to ensure they are in line with machine specifications. For system freezes and signal issues, inspect cable connections, restart the system, and check the power supply and control cards. If there is a hardware fault, replace the faulty components and reset the system.

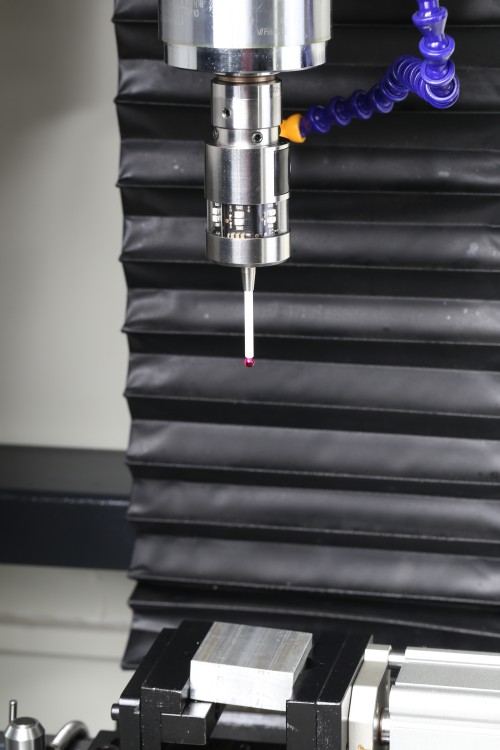

3. Spindle Failures

The spindle is a core component in CNC machines responsible for transmitting power to the cutting tool. Common spindle faults include:

• Bearing Damage: Prolonged use or inadequate lubrication can cause spindle bearing wear, leading to reduced machining accuracy.

• Instability in Spindle Speed: Motor faults, control system issues, or mechanical wear may cause unstable spindle speed.

• Spindle Overheating: Spindle overheating can result from overloading, insufficient lubrication, or cooling system failure.

Maintenance: Perform regular checks on the spindle, and replace damaged bearings as needed. If spindle speed is unstable, check the drive system and control system compatibility, and adjust or replace the motor as necessary. For overheating issues, inspect the cooling and lubrication systems to ensure proper functioning.

4. Mechanical Component Failures

Mechanical failures typically manifest as irregular machine movement or a decline in machining accuracy. Common mechanical failures include:

• Guideway Wear: Extended use can lead to wear on the machine’s guideways, causing rough movement or vibration.

• Ball Screw Failure: The ball screw, a vital component for machine movement, can suffer from wear or deformation, reducing positioning accuracy.

• Loosening or Deformation: Prolonged high-load operation can lead to loosening or deformation of the machine’s structure, impacting machining precision.

Maintenance: Inspect the guideways and perform repairs or replacements if necessary. For ball screws, check for wear or deformation and replace or recalibrate them as needed. Ensure all fasteners are tightened properly and reinforce components as required.

III. Fault Diagnosis and Maintenance Process

1. Fault Diagnosis

The first step in fault diagnosis is to perform a comprehensive inspection of the machine’s status, using methods such as visual inspection, sound checks, and tactile evaluation. By observing the machine’s operating state and reviewing alarm messages from the CNC system, operators can make a preliminary assessment of the fault. Common fault diagnosis methods include:

• Check Alarm Messages: CNC systems typically display fault information on the screen, so operators should first check the alarm codes.

• Parameter Testing: Measure parameters like servo motor current, voltage, and temperature to identify overload or system failures.

• Step-by-Step Elimination: Systematically check each potentially faulty component to narrow down the cause of the problem.

2. Maintenance Steps

Once the fault source is identified, technicians should take appropriate action to repair the machine. The maintenance process should follow these steps:

• Stop the Machine: Before starting any repairs, ensure the machine is powered off and locked out to ensure safety.

• Cleaning and Lubrication: Clean the machine’s internal components and check the lubrication system. Add lubrication if necessary.

• Component Replacement: Replace any damaged components, such as motors, sensors, or bearings.

• System Adjustment: After repairs, recalibrate and adjust the machine to ensure it operates at optimal conditions.

IV. Conclusion

3-axis CNC machines can experience various faults during prolonged use, which affect machining accuracy and production efficiency. Timely fault diagnosis and efficient maintenance are crucial to ensure the continued operation of the machine. By understanding the structure and principles of CNC machines, and mastering common fault diagnosis methods and maintenance techniques, operators and technicians can effectively address machine issues, extend machine lifespan, and improve production efficiency. Regular maintenance and upkeep are also important preventative measures to avoid faults.If you need related products, please click the link below for more details:3Axis CNC Machine Center--VMC300
