Features
1. The bed is made of high-quality cast iron material, and is finely ground after ultrasonic quenching to ensure the rigidity and accuracy of the machine processing. The machine is sturdy, stable and durable.
2. Fully enclosed and transparent plexiglass structure, high-precision linear guide rails, high-quality cast iron material casting, and high-precision ground ball screw.
3. This machine is equipped with an industrial-grade CNC system as standard, which can achieve five-axis linkage.
4. It executes universal standard G code programming and is compatible with FANUC and a variety of CAD/CAM software (UG,
Solidworks and other programming software).
5. Equipped with a high-precision spindle motor, the spindle motor power is 1.1Kw, and the spindle speed is 6000 rpm.
6. The X, Y, and Z axes use precision linear guide rails and are equipped with a centralized multi-channel duct lubrication system.
7. Built-in workpiece cooling device, heat dissipation through air cooling.

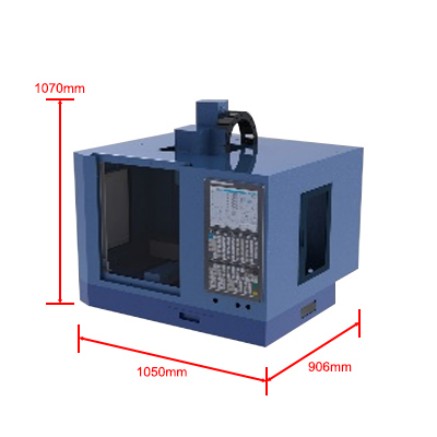

8. The fully enclosed structure composed of transparent acrylic and sheet metal is adopted, which not only ensures the safety of observation during use but also takes into account the stability of the fully enclosed structure of the machine.
9. Equipped with machine tool safety door protection device and built-in LED lighting, convenient for observation during use.
10. Use 220V voltage, occupy a small area, and be a practical machine tool with actual processing capacity and precision.
11. Main processing materials: copper, aluminum alloy, PVC plastic, plexiglass, etc.

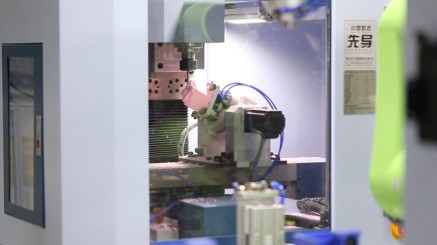

12. Bed and turntable: cast iron vertical structure, XYZ axis linear guide rail, spindle column drives tool movement; Yibo reducer cradle turntable; fully enclosed protective cover, vertical lifting door, with machine tool door safety protection device;
13. Workpiece cooling device: The cooling device is built-in air cooling, using ≥0.6 Pa air pressure, M command control.
Bed and turntable structure: cast iron vertical structure, XYZ axis linear guide rail, spindle column drives tool movement; Yibo reducer cradle turntable; fully enclosed protective cover, vertical lifting door, with machine door safety protection device;
Workpiece cooling device: The cooling device is built-in air cooling, using ≥0.6 Pa air pressure, M command control
Linear axis accuracy: Repeat positioning accuracy: not higher than 0.01mm; Rotary axis accuracy: Positioning accuracy: not higher than 16"; Repeat positioning accuracy: not higher than 12";
X/Y/Z axis moving stroke: 220/120/200mm
B-axis travel: ≥+30~-120°
C-axis travel: ≥+/-N×360
Spindle chuck taper: ER25
Spindle maximum power: 1.1kW
Spindle maximum speed: 6000rpm
Maximum clamping tool diameter: 16mm
Workbench size: 400*140mm
Workbench load: 15kg
Groove: 12mm/3
X/Y axis moving speed: 6000mm/min
Z axis moving speed 4000mm/min
Standard Accessories
No. | Tools | Spec. | Qty |
1 | Collet chuck | ISO20 – ER20 | 1 |
2 | ER20 Collet chuck set (8-piece) | φ3.175 | 1 |
3 | φ5 | 1 | |
4 | φ6 | 2 | |
5 | φ8 | 1 | |
6 | φ9 | 1 | |
7 | φ10 | 1 | |
8 | φ12 | 1 | |
9 | φ13 | 1 | |
10 | Spanner wrench | ISO20-ER20 | 1 |
11 | Quick vice | Q19D75 | 1 |
12 | Hex Wrench set (6-piece)
| S=3 | 1 |
13 | S=4 | 1 | |
14 | S=5 | 1 | |
15 | S=6 | 1 | |
16 | Open End Wrench Set | S=13/16 | 1 |
17 | Phillips Screwdriver | φ75*5 | 1 |
18 | Flathead Screwdriver | φ75*5 | 1 |
19 | Oil bottle | 100ml | 1 |
20 | Twist drill bit | Ф3 | 1 |
21 | Ф4 | 1 | |
22 | milling cutter | Ф4 | 1 |
23 | Ф6 | 1 | |
24 | Bakelite Block | 50*50*20mm | 1 |
25 | Aluminum Block | 50*50*20mm | 1 |
26 | Micro CNC milling manual | VMC220 | 1 |
27 | CNC controller manual | Xendoll | 1 |
Optional Accessories
No. | Tools | Spec. |
1 | Mill Chuck Set | 8-piece |
2 | Quick Vice | 100mmS/N:10036 |
3 | Clamping Kit | 58-piece |
4 | Carbide end mill Set | 6-piece |
5 | Fluts Hss end mill Set | 7-piece |
6 | Antimagnetic edge finder | / |
7 | Indexable carbide end mill | MT3 |
8 | the 4TH axis | / |
9 | Z axis tool setter | / |
10 | Tailstock for the 4th axis | / |
11 | MT3 Tapping handle and chuck | 3,4,5,6,8mm |
