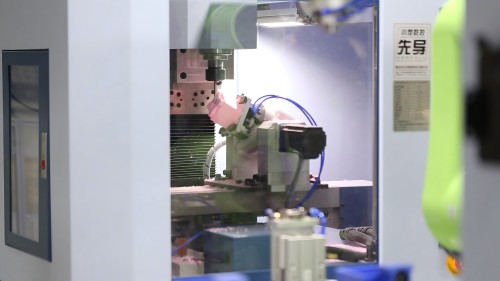

In the field of modern manufacturing, 3-axis CNC lathes play a crucial role due to their precision, efficiency, and versatility. These machines are capable of performing a wide range of machining tasks, from basic turning operations to complex part production. However, mastering the practical operation of a 3-axis CNC lathe presents several challenges, especially for beginners. The complexity of programming, tool management, selecting optimal cutting parameters, and maintaining machine stability requires a high level of skill and understanding. This article explores the key difficulties faced during practical training on 3-axis CNC lathes and provides insights into the specific operational details that need to be addressed to ensure smooth and accurate machining. By understanding and overcoming these challenges, operators can significantly improve their proficiency and contribute to the efficiency and quality of manufacturing processes.

1. Accuracy and Complexity of Program Writing

Challenge: Program writing is one of the most complex and detailed aspects of CNC lathe operation. The accuracy of the CNC program (mainly G-codes and M-codes) directly affects the machining results. Incorrect programs can lead to machining failures, tool damage, scrap parts, or even machine breakdowns.

Operational Details:

• Coordinate System Setup: When writing programs, the machine's coordinate system must be set up accurately. Common coordinate systems like G54, G55, etc., define the relationship between the machine’s coordinate system and the workpiece. Incorrect coordinate setup can cause the toolpath to misalign with the workpiece.

  Solution: Use precision tools such as precision gauges (e.g., dial indicators, micrometers) to ensure the workpiece is positioned accurately. The zero-point setting feature on CNC machines allows for direct measurement and accurate coordinate alignment.

• Program Verification and Simulation: After writing the program, it is essential to simulate the toolpath in the CNC system to check for errors. Simulation not only helps in detecting path errors but also predicts possible collisions (e.g., tool interference with the workpiece), allowing for adjustments.

  Solution: Load the program into the CNC machine’s virtual mode (e.g., FANUC’s “Tool Path Simulation” feature) for testing. This allows operators to preview potential tool collisions or excessive cutting issues and modify the program before actual machining.

2. Tool Management and Adjustment

Challenge: Tool management and adjustment are critical difficulties in CNC lathe operations. Tool wear, tool offset, and improper tool selection can all lead to machining errors or reduced efficiency.

Operational Details:

• Tool Installation and Inspection: Proper tool installation is essential for accurate machining. The tool tip must be correctly aligned with the workpiece. Incorrect installation or tool misalignment can lead to machining errors.

  Solution: Use a tool offset measurement device or tool setter to ensure accurate tool positioning. It is best to make fine adjustments in manual mode before running the program to ensure proper alignment of the tool tip.

• Tool Wear Compensation: Tool wear is inevitable during continuous operations. To maintain machining accuracy, tool wear must be compensated in the program. Operators need to regularly inspect tool condition and adjust offsets as needed.

  Solution: Use the tool compensation function (e.g., G41/G42) to adjust offsets in the program. By measuring the actual tool size and comparing it with the nominal size, operators can adjust the tool offset to maintain machining precision.

• Tool Replacement and Management: Especially during complex machining, frequent tool changes may be required. Proper tool management ensures efficient production and minimizes the risk of tool failure.

  Solution: Establish a standardized tool management system, regularly inspect tools, and store them properly to ensure efficient tool use.




3. Selection and Optimization of Cutting Parameters

Challenge: The selection of cutting parameters (such as cutting speed, feed rate, and cutting depth) directly affects machining results. Incorrect parameters can lead to poor surface quality, excessive tool wear, or vibration during the machining process.

Operational Details:

• Cutting Speed and Feed Rate: Different materials and tools require different cutting speeds. Excessively high cutting speeds can cause tool overheating and premature wear, while low speeds may reduce machining efficiency. High feed rates can increase cutting forces and result in unstable machining, while low feed rates may lead to rough surfaces.

  Solution: Operators must learn the cutting characteristics of different materials during training and choose appropriate cutting parameters based on the material properties, tool material, and machine capabilities. Use cutting parameter tables (e.g., Surface Feet per Minute (SFM) and Inches per Minute (IPM)) for reference to adjust spindle speeds (S) and feed rates (F).

• Cutting Depth and Strategy: In rough machining, appropriate cutting depths and widths are needed to improve efficiency. For finishing, cutting depth should be reduced to avoid excessive thermal stress on the workpiece and to ensure surface quality.

  Solution: Set cutting depths and paths strategically, applying step-by-step machining. In the initial stages of operation, use smaller cutting depths and gradually increase them to ensure stability.

4. Real-Time Monitoring and Adjustment During Machining

Challenge: During the machining process, real-time issues such as abnormal cutting conditions, tool wear, or workpiece deformation may arise, and operators need to make prompt adjustments.

Operational Details:

• Cutting Sound and Vibration Monitoring: The sound and vibrations during cutting can indicate the current machining condition. For example, sharp or high-pitched sounds may signal significant tool wear, and increased vibrations may affect surface quality.

  Solution: Operators should constantly monitor the sound and vibrations during machining. If abnormalities occur, reduce the feed rate or adjust cutting parameters. In extreme cases, machining should be paused for inspection.

• Temperature Monitoring: Temperature changes during machining, especially at high cutting speeds, can affect workpiece accuracy and tool life.

  Solution: Use temperature monitoring systems to ensure that the machine and workpiece remain within safe temperature ranges. If temperatures are too high, cutting parameters should be adjusted, or coolant flow should be increased to prevent overheating.




5. Machine Faults and Troubleshooting

Challenge: CNC machine faults and issues often arise during operations. For beginners, quickly diagnosing and resolving problems is a significant challenge.

Operational Details:

• Fault Diagnosis: Common CNC lathe faults include system crashes, servo motor failures, or spindle speed issues. Operators must quickly detect and troubleshoot these problems.

  Solution: Operators should regularly maintain the machine, inspecting the electrical system, lubrication system, and coolant system. Understand common machine faults and read the alarm codes from the CNC system to identify potential issues.

• Emergency Stop and Reset: In case of machining abnormalities, operators should immediately press the emergency stop button and reset the machine based on the nature of the fault.

  Solution: Understand how to use the CNC system's reset function to quickly recover to a safe working state and avoid further damage.

Conclusion

In the practical training of 3-axis CNC lathes, operators face numerous challenges, ranging from program writing to machine setup and from tool management to cutting parameter optimization. By combining theoretical knowledge with hands-on experience, operators can gradually overcome these challenges. Particular attention must be paid to operational details, as precision in every step is crucial for ensuring efficient and stable machining. With continuous practice and experience, operators can improve their skills and adapt to different machining environments, ultimately achieving high-quality results.
