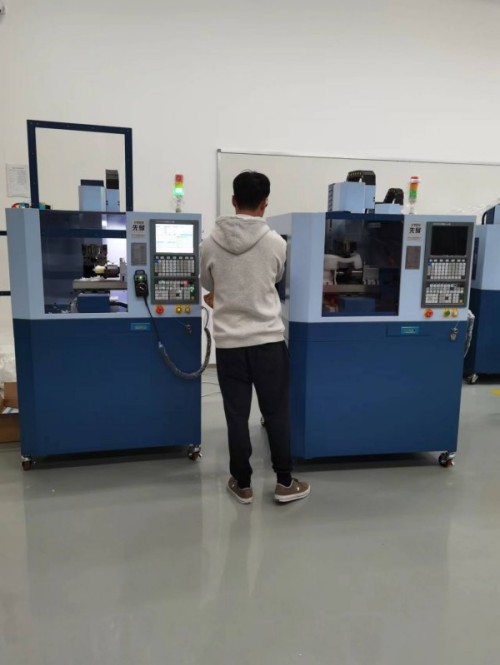

3-axis CNC milling technology is widely used in modern manufacturing for its efficiency and precision. By precisely controlling the machine tool via a CNC system, it is capable of processing complex-shaped parts, making it especially suitable for producing precision components. Mastering CNC milling operation techniques can improve processing efficiency, ensure high-quality results, and effectively extend the service life of tools and equipment. This article focuses on the key techniques and tips for operating a 3-axis CNC milling machine.

1. Tool Selection and Adjustment

The tool is one of the most critical components in 3-axis CNC milling. Proper tool selection not only ensures processing quality but also improves efficiency. The choice of tool should be based on factors such as the material of the workpiece, the processing task, and the required processing precision.

1. Tool Type Selection

• End Mills: Commonly used for a wide range of milling operations, suitable for flat surface milling, slotting, contour milling, and more.

• Ball End Mills: Used for surface milling, particularly for three-dimensional curved surfaces, such as in mold making.

• Face Mills: Used for large-area surface milling, ideal for high-efficiency material removal.

2. Tool Material SelectionThe choice of tool material depends on the material being processed. Carbide tools are ideal for high-hardness materials, while high-speed steel (HSS) tools are suitable for general steel processing. Recently, coated tools have become widely used for their increased wear resistance and heat tolerance.

3. Tool Length and Diameter AdjustmentThe length and diameter of the tool significantly affect processing precision. Excessively long tools may cause vibration, leading to reduced accuracy, while too-short tools may limit cutting depth and processing space. Adjusting tool length should ensure that the contact point between the tool and workpiece is accurate to avoid machining errors.

4. Tool Wear MonitoringTool wear directly affects processing quality. Regular inspection of tool wear is essential before and after each operation. If necessary, compensate for tool wear or replace the tool. For precision processing, real-time tool wear monitoring systems can help ensure processing accuracy.




2. Tool Path and Programming

Programming for 3-axis CNC milling directly impacts the efficiency and accuracy of the machining process. Designing an efficient tool path reduces processing time, improves surface quality, and minimizes tool wear.

1. Designing Efficient Tool PathsTool path design should minimize unnecessary retraction and complex movements to reduce processing time. For contour milling, avoid unnecessary empty runs around the workpiece. For surface milling, avoid excessive feed rates that can lead to vibration and tool wear.

2. Optimizing Cutting SequencesWhen machining complex parts, the cutting sequence should be optimized. For example, rough cutting should be performed before finishing to reduce the load on the tool and ensure precision. Proper sequencing also reduces the risk of tool deflection and increases overall processing efficiency.

3. CAD/CAM Program GenerationModern CNC milling machines commonly use CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software for programming. CAD software is used to design the geometry of the workpiece, while CAM software generates the CNC program automatically. These tools enable programmers to quickly create efficient and precise tool paths, minimizing human error and optimizing the machining process.

3. Feed Rate and Spindle Speed Adjustment

Feed rate and spindle speed are critical parameters that affect processing results and efficiency. When adjusting these parameters, factors such as tool material, workpiece material, and cutting depth must be considered.

1. Spindle Speed AdjustmentSpindle speed directly affects cutting speed, which in turn influences cutting force and temperature. Too high a spindle speed can lead to tool overheating, increasing wear or even tool breakage. Conversely, too low a speed can decrease processing efficiency. Typically, spindle speed can be calculated based on the cutting speed (vc), tool diameter (d), and spindle speed (n) using the formula:

   $$n = \frac{1000 \times vc}{\pi \times d}$$

   where n is the spindle speed, vc is the cutting speed, and d is the tool diameter. This calculation helps select the optimal spindle speed.

2. Feed Rate AdjustmentFeed rate refers to the speed at which the tool moves in the direction of feed. It directly impacts cutting load and processing efficiency. A feed rate that is too low results in longer processing times, while one that is too high can lead to poor surface quality and increased tool wear. Feed rate is typically calculated based on cutting depth, tool diameter, and material properties. Proper adjustment ensures optimal tool life and surface finish.

4. Workpiece Clamping and Positioning

The clamping and positioning of the workpiece are crucial for ensuring machining accuracy on a 3-axis CNC milling machine. Unstable clamping can lead to workpiece movement or vibration, affecting processing quality.

1. Fixture SelectionThe appropriate fixture should be selected based on the shape, size, and processing requirements of the workpiece. For complex-shaped parts, custom or multi-axis fixtures may be used to ensure stable clamping. Common fixture types include mechanical clamps, pneumatic clamps, and vacuum chucks.

2. Clamping Force ControlThe clamping force should be appropriate. Too little clamping force can cause workpiece displacement during machining, while excessive clamping force can cause workpiece deformation, especially for thin-walled or soft material parts. Properly adjusting clamping force ensures stable clamping without affecting workpiece integrity.

3. Positioning AccuracyPositioning accuracy directly impacts machining precision. During clamping, ensure that the reference surfaces of the workpiece are parallel to the machine table, and use suitable locating references to guarantee precise positioning. Using multiple locating points helps ensure the workpiece remains stationary during processing.

5. Application of Coolant

The use of coolant during CNC milling helps reduce heat buildup during cutting, preventing tool overheating, reducing wear, and improving processing quality.

1. Coolant TypeCommon coolant types include water-soluble coolants, oil-based coolants, and mist coolants. Water-soluble coolants are typically used for materials like aluminum and steel, while oil-based coolants are better for harder metals. Selecting the right coolant improves machining accuracy and extends tool life.

2. Coolant DeliveryCoolant is typically delivered to the cutting zone via nozzles or cooling systems. The nozzle placement and coolant flow rate should be optimized to ensure effective cooling and lubrication during the cutting process.

3. Coolant Maintenance and ReplacementOver time, coolant can accumulate contaminants or degrade, affecting machining results. Regular monitoring of coolant condition is essential, and coolant should be changed or filtered periodically to maintain its effectiveness.

6. Conclusion

The key to mastering 3-axis CNC milling operation lies in the correct selection of tools, precise programming, proper adjustment of feed rates and spindle speeds, and ensuring stable clamping and positioning of workpieces. By mastering these techniques, operators can significantly improve machining efficiency and quality while extending the life of tools and equipment. As technology advances, 3-axis CNC milling will continue to evolve towards higher precision and efficiency, and operators must continually learn and practice to meet the challenges of more complex machining tasks.If you need related products, please click the link below to contact us：3-4 axis milling CNC C17
