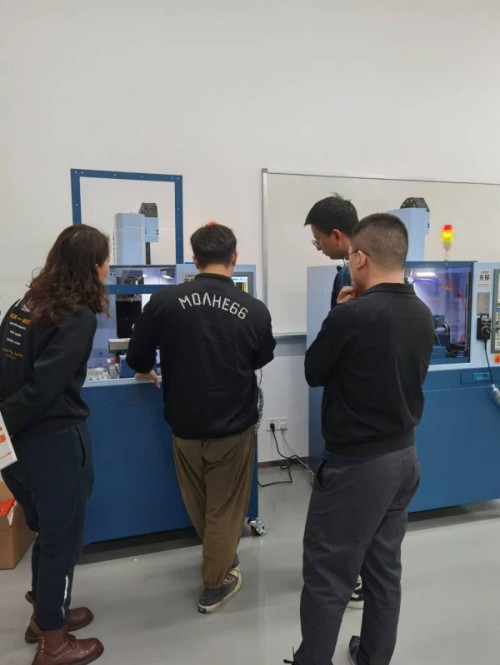

CNC (Computer Numerical Control) lathes are essential machines in modern manufacturing, widely used in metal cutting, precision machining of complex parts, and mass production. With the continuous advancement of manufacturing technologies, CNC lathes have played a crucial role in improving production efficiency, machining accuracy, and the complexity of parts. In practical training on 2-axis CNC lathes, trainees need to learn how to control the toolpath and machining process through programming, as well as how to adjust machine parameters to complete precise machining tasks. This article will detail the content of 2-axis CNC lathe practical training, covering the operating principles, basic settings, common machining methods, and practical skills.
1. Basic Components and Working Principles of the 2-Axis CNC Lathe
A 2-axis CNC lathe primarily consists of the following parts:
CNC Control System: The CNC system is the "brain" of the lathe, responsible for processing program codes and controlling machine movements. Common CNC systems include FANUC, SIEMENS, and HAAS.
Spindle: The spindle is the power source of the lathe, driving the workpiece rotation, usually powered by an electric motor.
Tool Turret: The tool turret holds various cutting tools, and the tools are automatically changed through program control to perform different machining tasks.
Servo Motors and Drive System: These control the movement of the axes, including the X-axis (horizontal feed axis) and the Z-axis (longitudinal feed axis).
Coolant System: The coolant system supplies cutting fluid to lower the temperature during machining, reducing friction and wear during cutting, and ensuring machining accuracy.
The 2-axis CNC lathe operates based on computer numerical control programs (G-code). By adjusting the positions of the X and Z axes, the machine controls the movement of the tool to follow a predetermined path and complete the precise machining of the workpiece.
2. Operating Steps for 2-Axis CNC Lathe
In practical operation, the CNC lathe’s operating steps are generally divided into the following stages:
2.1 Preparatory Work Before Machining
Workpiece Clamping: Choose the appropriate fixture to fix the workpiece based on its dimensions and machining requirements. The workpiece must be securely clamped to prevent vibrations or displacement during machining, which could affect the machining accuracy.
Tool Selection: Select the appropriate cutting tools according to the machining task. Common tools for a 2-axis CNC lathe include turning tools, drills, and end mills. Tool selection should consider the material, machining type (such as turning, drilling, or grooving), and surface finish requirements.
Inputting Program Code: Based on the machining drawings, write or import the corresponding CNC program. The program typically includes G-codes, M-codes, and tool compensation settings. G-codes define the machining trajectory and movement commands, while M-codes control auxiliary machine functions, such as tool changing and coolant control.
2.2 Machine Setup and Debugging
Setting Zero Point: Establish the workpiece zero point (origin) by manually adjusting the spindle and tool turret. Accurate zero point setting for both the X and Z axes is essential to ensure machining accuracy.
Tool Compensation: Perform tool compensation through the CNC system to ensure that the tool dimensions and positions match the program settings. Compensation includes tool length and radius compensation to correct errors caused by tool wear or installation deviations.
Program Check: Before starting actual machining, run a dry run to verify that the program logic is correct and that no issues like tool-collision or incorrect tool paths will occur during the actual machining process.
2.3 Monitoring During Machining
During machining, the operator should constantly monitor the following factors:
Coolant Supply: Ensure that the coolant system is functioning correctly, adjusting the coolant flow or replenishing cutting fluid to avoid overheating of the tool.
Machine Vibration and Noise: Regularly check for any vibrations in the machine, which could lead to poor machining results or equipment damage.
Tool Wear: Tool wear is inevitable during machining, so it’s important to periodically check the condition of the tools and replace or adjust them as necessary.
2.4 Post-Machining Inspection
After machining, the workpiece should be inspected for dimensional accuracy and geometric tolerances to ensure it meets the design specifications. Common inspection tools include calipers, micrometers, and projectors.
3. Common Machining Methods on 2-Axis CNC Lathes
2-axis CNC lathes are capable of performing a wide range of machining operations, including but not limited to:
External Turning: Cutting along the external surface of the workpiece, commonly used for machining shaft parts.
Internal Turning: Used for machining internal holes in a workpiece, typically employing either external or specialized internal turning tools.
Grooving and Parting: Using specific grooving or parting tools to groove or split the workpiece.
Drilling: CNC lathes are often equipped with adjustable drilling functions, allowing the use of turning tools to drill holes or cut threads.
Taper Turning and Chamfering: Achieved by tilting the tool or adjusting the turret angle to create tapered surfaces or chamfers on the workpiece.
Thread Turning: CNC programs can be used to cut both internal and external threads on the workpiece.
4. Practical Skills for Operating 2-Axis CNC Lathes
Programming Techniques: When writing CNC programs, using G-codes and M-codes efficiently can improve machining efficiency. For example, selecting optimal cutting parameters (feed rates and spindle speeds) can reduce machining time without compromising quality.
Tool Selection and Adjustment: During machining, selecting the right type and angle of tools based on the material, cutting conditions, and machining requirements is crucial to ensure good surface finish and dimensional accuracy. Additionally, regularly checking tool wear and replacing or adjusting tools when needed is important.
Feed Rate and Cutting Depth Control: The feed rate and cutting depth should be chosen appropriately based on the material, tool conditions, and environmental factors. Proper control helps improve cutting efficiency while avoiding excessive cutting forces that could lead to workpiece deformation or tool damage.
5. Conclusion
As an important machine tool, the 2-axis CNC lathe plays a vital role in precision machining of various parts. In practical operation, operators need to be familiar with the basic principles of CNC systems, master programming techniques, correctly set up the machine, and have a solid understanding of machining knowledge. Through systematic practical training, operators can enhance their skills and better understand and apply the operation process of CNC lathes, improving machining accuracy and production efficiency.
